Compact EDC flashlight comparison

Fast Read

EC200S Mini UV

Shortest overall

71.0 mm, 18350, white + 365 nm UV

EC150

Shortest AA/14500

79.5 mm official length

Tool AA 3.0

Slim baseline

89.5 x 18.5 mm, 23.5 g empty

KR4

Larger reference

98 x 29 x 24 mm, 95 g empty

Shortest

Skilhunt EC200S-Mini UV

18350 white + UV EDC

Shortest body in the report. Adds a 365 nm UV channel rated at 1000 mW and USB-C charging, but it uses one 18350 cell rather than AA/14500.

AA/14500 pick

Skilhunt EC150

Straight EDC, side switch

Shortest dual-fuel AA/14500 light here, with USB-C charging for 14500 cells, magnetic tail, and a high-CRI Nichia 519A option.

Feature-rich

Wurkkos HD10

Right-angle headlamp / EDC

Anduril 2.0 UI, RGB aux LEDs, USB-C charging, selected 14500-battery variant, and a 4000K CRI95+ emitter option.

Baseline

Lumintop Tool AA 3.0

Slim physical baseline

Longer and narrower than the compact comparison lights. Useful as the familiar AA/14500 tail-clicky reference shape.

Side-by-side Specs

Primary specs come from official product pages and manuals. EC200S-Mini UV and KR4 are different battery classes, so size and use-case notes matter as much as output.

Light	LED / CRI	Power / charging	Output / beam	Dimensions / weight	Notes
Skilhunt EC200S-Mini UV Official product page 18350 EDC · White + 365 nm UV · Side e-switch Shortest	2x CREE XP-G4 CW 6500K + 1x 66A1B UV 365 nm or 2x Nichia 519A Neutral White R9080 5000K + UV or 2x Luminus SFT25R 5000K + UV	1x 18350 Li-ion 2.7V-4.2V operating range; >=8A recommended USB-C charging; BL-111 battery option listed	Max 2100 lm CREE CW + UV365 1000 mW Max 1400 lm Nichia + UV365 1000 mW SFT25R listed 1850 lm; official mode table also says 1800 lm; up to 219 m throw	71.0 mm length 25.0 mm head dia. 42.5 g without battery	IPX-8; 1 m impact Magnetic tail; double-sided pocket clip 18350/UV specialty, not AA/14500 dual-fuel
Skilhunt EC150 Official product page Straight EDC · Side e-switch Shortest	3x Nichia 519A, 5000K, CRI90 3x SFT25R, 5700K-6500K SFT25R CRI not listed officially	1x 14500 or 1x AA 0.9V-4.2V operating range USB-C charging only for one 3.6/3.7V 14500 Li-ion	Max 1350 lm with SFT25R on 14500 Max 950 lm with 519A on 14500 Max throw 169 m / 7200 cd with SFT25R	79.5 mm length 22.5 mm head dia. 35.5 g without battery	Magnetic tail Clip and lanyard included Body diameter not published in official sources found
Wurkkos HD10 Official product page Selected variant: with 14500 battery, 4000K, black · Anduril 2.0 UI Right-angle	3x 90 CRI CSP main LEDs 3x RGB aux LEDs 4000K CRI95+ or 6000K CRI90+	1x 14500 Li-ion only 3.0V-4.2V operating range USB-C charging; selected variant includes 900 mAh 14500	Max 1200 lm 129 m / 4175 cd TIR lens, 29 deg beam angle	82.4 mm length 23.5 mm head dia. 46 g; battery basis not stated	Magnetic tail Headband shown/listed Body diameter not published in official sources found
Lumintop Tool AA 3.0 Official product page Straight tail-clicky / twist operation · Aluminum version Baseline	OSRAM cool white official listing OSRAM P9 named on Lumintop Ti page Official CRI not listed; 1Lumen measured Ra about 70-74	1x 14500 or 1x AA No onboard charging in the light Some kits use a USB-C rechargeable 14500 cell	Max 900 lm on 14500 Max 300 lm on AA 138 m / 4750 cd	89.5 mm length 18.5 mm dia. 23.5 g without battery	IP68, 2 m underwater 1.5 m impact Use Tool AA 3.0 specs, not older Tool AA 2.0 specs
Noctigon KR4 Official Intl Outdoor page Quad tail e-switch enthusiast light · Different class: 18650 / optional 18350 Size reference	Configurable quad-emitter build LED, CCT, and CRI depend on selected option Not normalized against AA/14500 fixed listings here	1x unprotected flat-top 18650 Optional 18350 tube listed Battery not included in official listing	Build-dependent output and beam Quad optic format Included for size comparison, not output ranking	98 mm length with 18650 tube 29 mm head dia.; 24 mm body dia. 95 g without battery; 68 mm with 18350 tube	Official and independent dimensions agree within rounding Wider and much heavier than the AA/14500 group Use as ergonomic size reference, not direct feature match

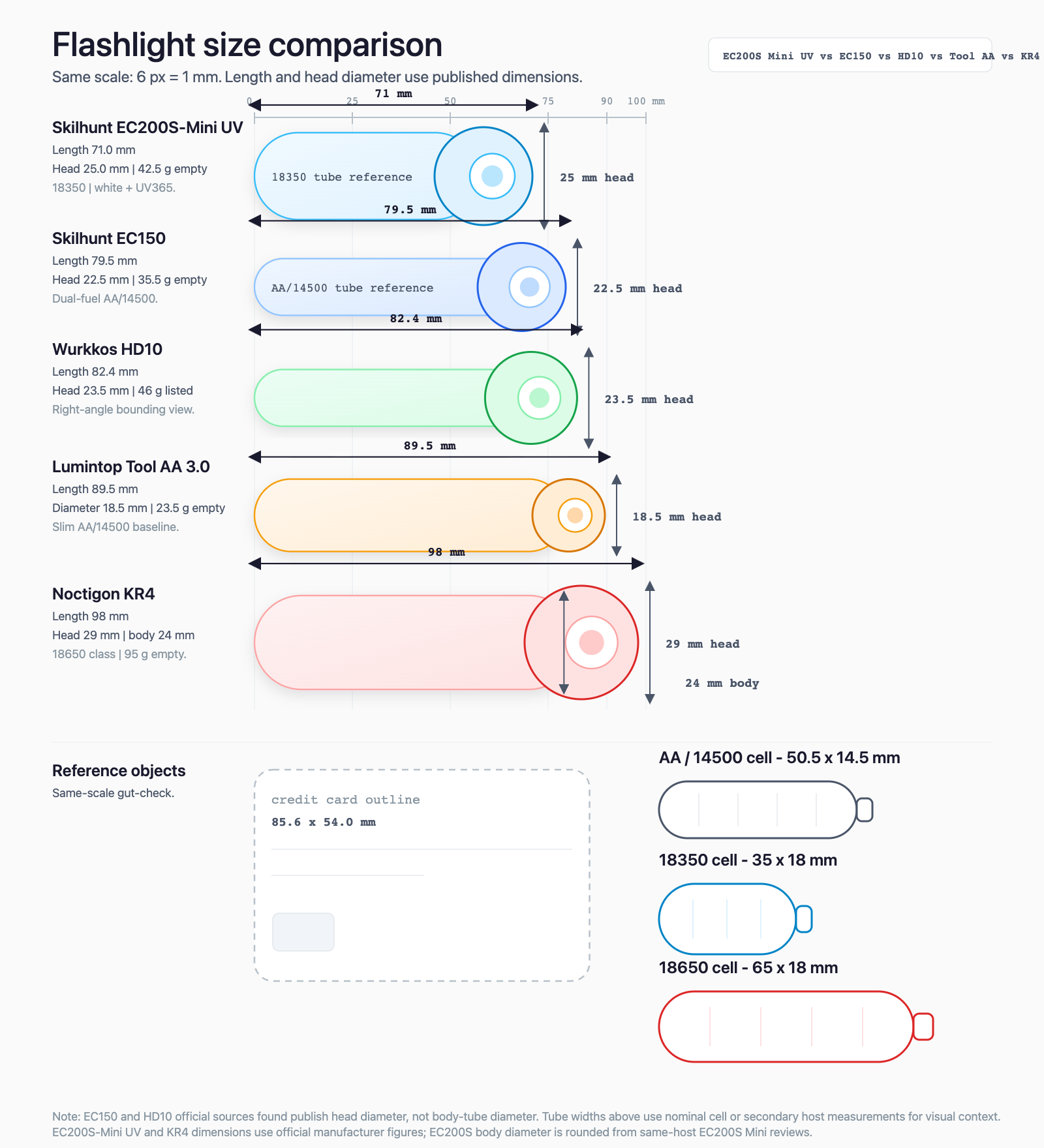

Physical Size Comparison

Same-scale visual comparison. The silhouettes are scaled to listed length and diameter; reference objects now include AA/14500, 18350, and 18650 cells.

EC200S Mini UV

71.0 mm

25.0 mm head; 42.5 g empty

EC150

79.5 mm

22.5 mm head; 35.5 g empty

HD10

82.4 mm

23.5 mm head; 46 g listed

Tool AA 3.0

89.5 mm

18.5 mm dia.; 23.5 g empty

KR4

98 mm

29 mm head; 24 mm body; 95 g empty

Physical dimensions from official sources unless noted. Scale is relative to Lumintop Tool AA 3.0 length.

Light	Length	Head / body diameter	Weight	Scale vs Tool AA
Skilhunt EC200S-Mini UV	71.0 mm	25.0 mm head; body dia. not official; reviews measure about 22 mm	42.5 g without battery	79.3% of Tool AA length; 6.5 mm wider at the head
Skilhunt EC150	79.5 mm	22.5 mm head; body dia. not listed	35.5 g without battery	88.8% of Tool AA length; 4.0 mm wider at the head
Wurkkos HD10	82.4 mm	23.5 mm head; body dia. not listed	46 g; with/without battery not stated	92.1% of Tool AA length; 5.0 mm wider at the head
Lumintop Tool AA 3.0	89.5 mm	18.5 mm official diameter	23.5 g without battery	100% baseline; longest and narrowest AA/14500 reference
Noctigon KR4	98 mm with 18650 tube; 68 mm with 18350 tube	29 mm head; 24 mm body	95 g without battery	109.5% of Tool AA length; 10.5 mm wider at the head; 5.5 mm wider at body

Technical Output Tables

Mode tables are manufacturer-published values. Runtime and brightness depend on cell, temperature, thermal step-down behavior, and emitter selection. EC200S-Mini UV output rows focus on official max/beam values because the UV manual table is image/OCR-heavy.

Skilhunt EC150 official manual table. Reference cells: 14500 920 mAh and Ni-MH 2450 mAh.

Configuration	T1	T2	H1	M1	M2	L1 / L2	Throw
14500 + SFT25R	1350 lm step-down to 380 lm; 1 + 70 min	790 to 380 to 255 lm; 3 + 55 + 20 min	380 to 135 lm; 65 + 40 min	135 to 45 lm; 180 + 70 min	24 lm; 18 h	1 lm; 90 h / 0.2 lm; runtime not listed	169 m / 7200 cd
14500 + Nichia 519A	950 lm step-down to 275 lm	570 to 275 to 180 lm	275 to 100 lm	100 to 35 lm	20 lm	1 lm / 0.2 lm; runtimes follow 14500 row	89 m / 2000 cd
Ni-MH + SFT25R	380 to 160 lm; 5 + 120 min	255 to 140 lm; 50 + 70 min	120 lm; 200 min	35 lm; 9.5 h	8 lm; 20 h	1 lm; 80 h / 0.2 lm; runtime not listed	87 m / 1900 cd
Ni-MH + Nichia 519A	275 to 115 lm	180 to 100 lm	90 lm	27 lm	7 lm	1 lm / 0.2 lm; runtimes follow Ni-MH row	46 m / 550 cd

Skilhunt EC200S-Mini UV official output highlights.

Configuration	White output	UV output	Peak / throw	Notes
2x CREE XP-G4 CW 6500K + 66A1B UV	2100 lm max	UV365 1000 mW	6800 cd / 164 m	Highest listed white output; IPX-8; 1 m impact
2x Nichia 519A R9080 + 66A1B UV	1400 lm max	UV365 1000 mW	3000 cd / 109 m	Product selection says 5000K; older/manual output text still references 4500K
2x Luminus SFT25R 5000K + 66A1B UV	1850 lm max; mode table also says 1800 lm	UV365 1000 mW	12000 cd / 219 m	Official product page labels this a newer offer; max output is inconsistent across official text
UV group levels	N/A	UV1 1000 mW; UV2 200 mW; UV3 50 mW	Not stated	UV levels from official EC200S UV manual; runtimes not normalized here

Wurkkos HD10 official manual table. FL1 values use one 900 mAh 14500.

Mode	Output	Runtime	Shared beam / rating data
A1	0.5 lm	100 h	Max throw 129 m; 4175 cd; IP68; manual impact rating 1 m
B2	3 lm	72 h	TIR lens; 29 deg beam angle
C3	10 lm	32 h	ATR thermal regulation, 60 C
D4	30 lm	7.6 h	USB-C charging without removing battery
E5	75 lm	3.2 h	Anduril 2.0 simple and advanced UI
F6	220 lm	2 h	3x RGB aux LEDs
G7	520 lm	1.6 h	4000K CRI95+ or 6000K CRI90+
H8	1200 lm	1.5 h	14500 Li-ion only

Lumintop Tool AA 3.0 official product table.

Battery	Low	Medium	High	Turbo	Strobe	Beam / ratings
14500 Li-ion	20 lm / 37 h	150 lm / 4 h	500 lm / 1 h	900 lm / 10 min	500 lm / 3 min + 1 h	138 m / 4750 cd; IP68; 1.5 m impact
AA alkaline	4 lm / 60 h	30 lm / 9 h	150 lm / 2 h	300 lm / 45 min	150 lm	IP68 underwater 2 m
AA NiMH	4 lm / 60 h	30 lm / 12 h	150 lm / 3 h	300 lm / 1 h	150 lm	Official tests used Eneloop 1900 mAh

Caveats And Sources

Source notes and unresolved spec gaps

Skilhunt EC200S-Mini UV: official sources list 71.0 mm length, 25.0 mm head diameter, and 42.5 g empty weight. Official body diameter was not found; same-host EC200S Mini reviews measure roughly 22 mm body/tube diameter. The current product selector says Nichia 519A 5000K, while the older/manual output text still references the discontinued 4500K version. The 2100 lm title applies to the CREE cool-white option; Skilhunt also lists SFT25R as 1850 lm in one official area and 1800 lm in another.
Skilhunt EC150: body diameter, separately labeled R9, SFT25R CRI, and L2 runtime were not found in official sources. The manual prints the Nichia line as CRI 9080, but the product page clearly lists the Nichia 519A option as CRI90.
Wurkkos HD10: body diameter and whether the 46 g weight includes the battery are not stated in the official text. The manual lists 1 m impact resistance; one official marketing image reportedly says 1.5 m, so this report uses the manual value.
Lumintop Tool AA: the baseline is Tool AA 3.0 aluminum. Tool AA 2.0 has different LED/output specs. Official CRI is not listed; the Ra about 70-74 value comes from 1Lumen sample measurements, not Lumintop.
Noctigon KR4: included only as an 18650/18350 size reference. LED, CCT, CRI, optic, driver, and output depend on the selected configuration, so the report does not rank it against fixed AA/14500 output tables. Official and independent dimensions agree within rounding.

Primary sources: Skilhunt EC200S-Mini UV product page, Skilhunt EC200S UV manual PDF, Skilhunt EC150 product page, Skilhunt EC150 manual PDF, Wurkkos HD10 product page, Wurkkos HD10 manual PDF, Lumintop Tool AA 3.0 product page, and Intl Outdoor Noctigon KR4 product page. Secondary references: ZeroAir EC200S-Red Mini review, 1Lumen EC200S Mini review, 1Lumen Tool AA 3.0 review, 1Lumen Noctigon KR4 review, and BudgetLightForum KR4 measured review.
